تاپیک معرفی انواع شاسی تلوزیون الجی همراه با عکس ومشخصات فنی

[KIAN FAR]

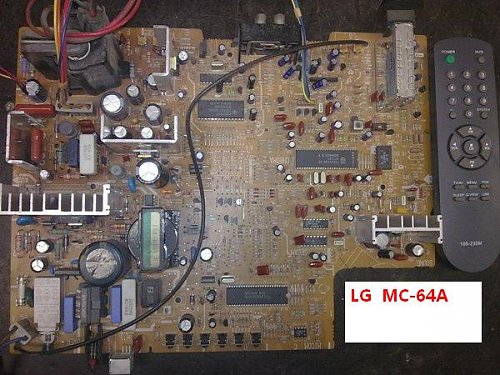

LG chassis MC-64A
LG8534-07C ------------------ processor Exercise
TDA8362B -------------------- Video / pct
TDA2006 ---------------------- ULF
LA7830 ------------------------- footage
STRS5707 -------------------- BP
154-375F ---------------------- TDKS
105-230M --------------------- RC
PSU ..... RR = DR = 115 volts, running a load-60W - without problem.Samye common "tipovuhi" C824 in power supply, C408 and D408 in CP

Listen
Read phonetically


Dictionary - View detailed dictionary

[KIAN FAR]

تاپیک معرفی انواع شاسی تلوزیون الجی همراه با عکس ومشخصات فنی

[KIAN FAR]

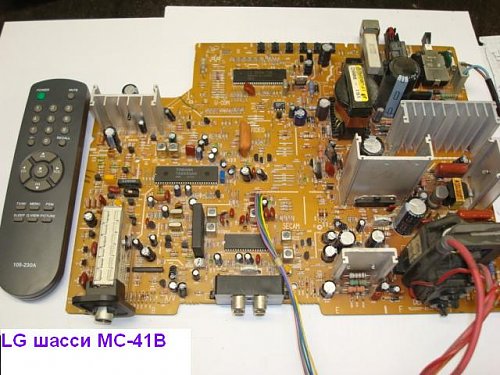

LG chassis MC-41B
LG8534-13A --------------- percent Manage
TA8690AN-----------------video/PAL
TA8750 --------------------- SEKAM
TA8445K ------------------- footage
STRS6707 ----------------- PSU
TDA2006 ------------------- ULF
154-375F ------------------ TDKS
103-230A ------------------ RC
BP ... DR - 60 volts, ud - 115 volts

Listen
Read phonetically


Dictionary - View detailed dictionary

[KIAN FAR]

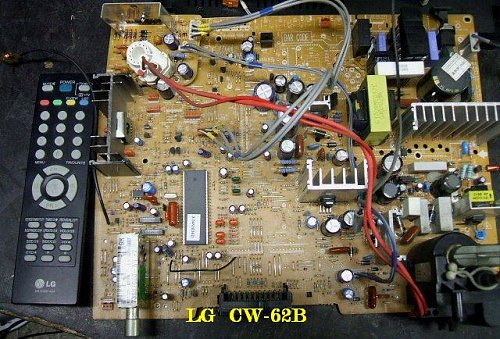

LG chassis CW62B
TDA12020PQ/N1/F00 ----------- Control Processor
AT24C16A --------------------------- mikrsh. Memory
TDA7297A --------------------------- ULF
TDA4863AJ ------------------------- footage
6174V-5003X ----------------------- TDKS
6700MF0018A (TAEA-6011D)-Tuner
STRW6754 -------------------------- BP
TDA6107AJF------------------------В/усилители

A51QGT420X ----------------------- kinescope, slim

Listen
Read phonetically

[KIAN FAR]

LG CF-20F30K
MC-019A ------------------------------- chassis (circuit)
TDA9381PS/N2/3I0792 ----------- UOC
0ICTMPH010A
ATMEL 24C16A ---------------------- memory (flash)
LA7016 ---------------------------------- Switch
LA7840 ---------------------------------- footage
TDA2006 -------------------------------- ULF
STR F 6654 ---------------------------- UPS
6174V-6002K + TT2140 ----------- vksr
DT5-BF70D ---------------------------- tuner
TDA6107JF ---------------------------- wu
6710V00090D ------------------------- console
A48JLL90X07 ------------------------- CRT

[KIAN FAR]

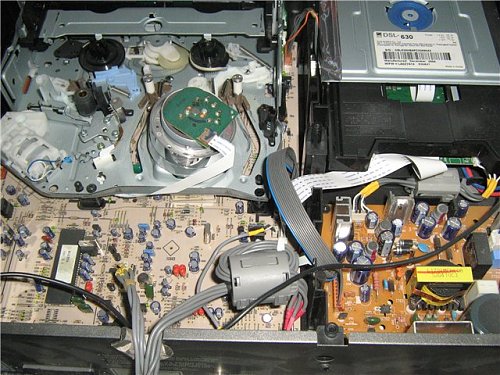

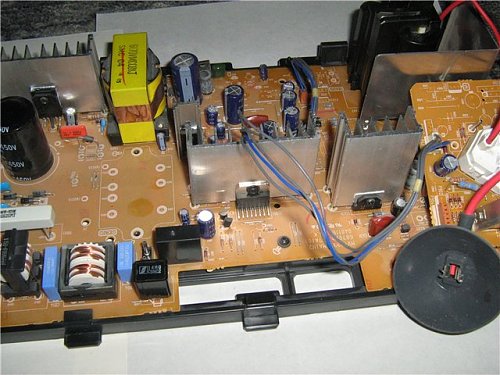

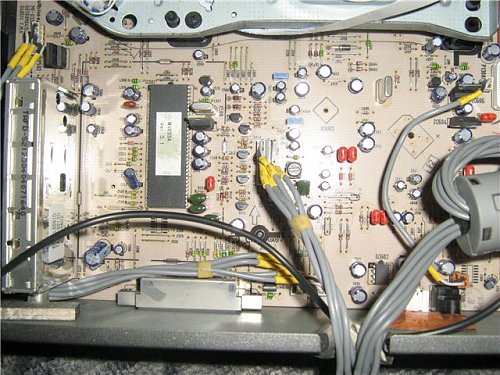

LG Multiplex 55 on the label
LG KZ 21FC70RX-in at the label.

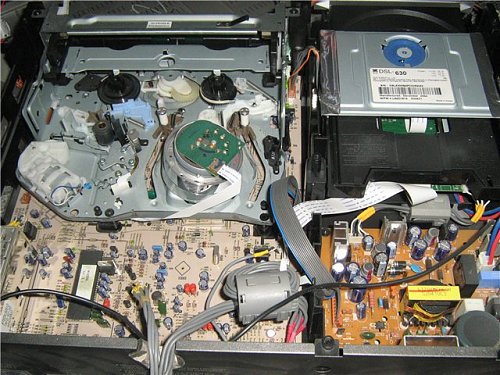

Videotroyka DVD + VSH + TV

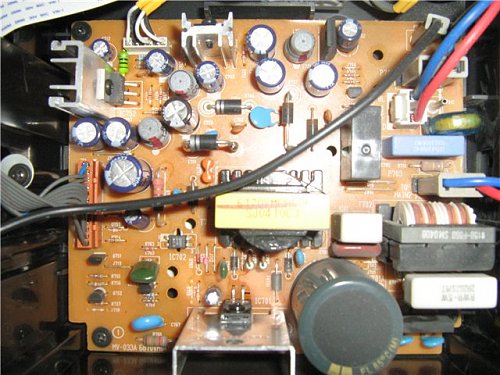

Chassis MV-033A MAIN 2
Two power supplies. One internal DVD and VSH
STR 6635 EM 43AD
Television ---------- STR F 6654
Manpower ----------------- LA 7840
Tuner ------------------------ TAFD-S212D404D0802
Cinhrovideoprots ------- MICRONAS
VCT 3834F 06
4502.2P LN F
146244.001
on the procedure label MV 033A ver 3.1
Sound --------------------------- TDA 7287
TDKS -------------------------- 6174V6006J analog HR 80177 or 6174V6006M
6174V5003A not suit it at 110 degrees.
Video amplifier ----------- TDA6107JF
Control processor is covered with full of filth and place of the inscription is not possible to wash to read.
The device immediately arises in the DR no matter how it turned off.

Listen
Read phonetically

Dictionary - View detailed dictionary

[KIAN FAR]

LG MC-035A Chassis

SDA6001 --------------------m/kontroller
24C16 ------------------------ m / memory circuit
VSP9427B ----------------- in / processor, multi-standard decoder Pollen
CXA2069Q ----------------- Audio / Video Switch
CXA2150AQ --------------
LM4765T ------------------- ULF
TDA6111Q -----------------v/usilitel (3 pieces)
STRF6658B --------------- BP
MSP3411G ---------------- stereo engines
6174V-6010A ------------- TDKS
A68QCP891X737 ------- kinescope

The original remote (with a "dynamo") is missing, but the basic parameters suitable 6710V00124D
Mode BP RR = 135 volts, in DR works B.P standby
Log-in service:
Hold more than 10 seconds, while holding down the Menu button on the remote controland TV panel
Navigating pages - the Menu button on the remote or panel TV
